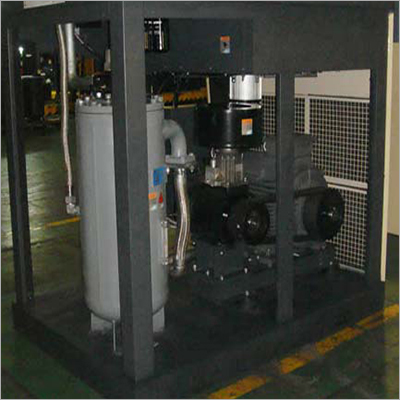

XL-75A-350A Oil Screw Air Compressor

Model

XL - 75A/W

XL - 100A/W

XL - 120A/W

XL - 150A/W

XL - 175A/W

XL - 200A/W

XL - 250A/W

XL - 300A/W

XL - 350A/W

Air delivery/Pressure

10.8/0.7

13.5/0.7

16.2/0.7

21.6/0.7

25.2/0.7

28.7/0.7

32.5/0.7

36.8/0.7

42.7/0.7

10.1/0.8

12.7/0.8

15.2/0.8

20.1/0.8

24.0/0.8

27.6/0.8

30.8//0.8

34.7/0.8

40.8/0.8

(m3/min/MPa )

8.50/1.0

11.3/1.0

14.3/1.0

17.5/1.0

21.0/1.0

25.3/1.0

28.2/1.0

30.8/1.0

38.1/1.0

7.69/1.2

10.0/1.2

12.9/1.2

16.0/1.2

18.3/1.2

22.4/1.2

25.1/1.2

28.9/12

34.9/1.2

Pressure stage

Single

Enviroment temperature

-5 +45

Cooling way

Air cooling/water cooling

Discharge temperature

+15

dB(A)

822

852

882

882

Transimissi way

Belt driven/Direct driven

Voltage v/ph/Hz

380.440/3/50.60/according requirement

Power (kw)

55

75

90

110

132

150

185

220

250

Start way

Y-/soft starter/inverter start

Volume of lubricate

26

45

70

70

80

80

130

130

150

Dimension

Length mm

2100

2100

2422

2725

2725

2856

2856

3134

3134

Width mm

1780

1780

1616

1836

1836

1868

1868

2044

2044

Height mm

1830

1830

1705

1865

1865

1945

1945

1965

1965

Weight kg

2000

2150

2250

3100

3650

4150

4350

4700

5500

Outlet lnch

G 1

G 1

G1 1/ 4

G1 1/ 4

G1 1/ 4

G1 1/ 2

G1 1/ 2

G 2

G 2
