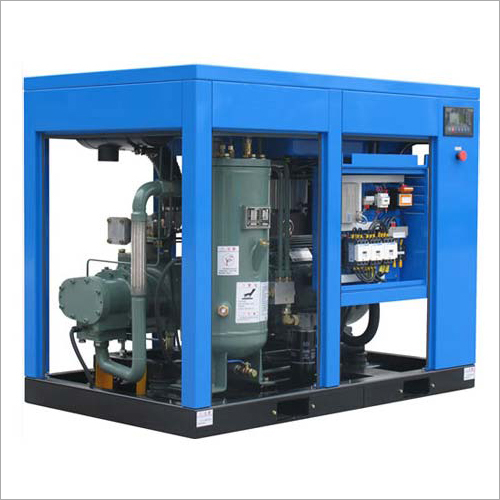

XL-20A Industrial Screw Compressor

Model

XL-15A

XL-20A

XL-25A

XL-30A

XL-40A

XL-50A

XL-60A

XL-75A/W

XL-100A/W

Air delivery/Pressure

1.6/0.7

2.2/0.7

3.2/0.7

3.6/0.7

5.2/0.7

6.6/0.7

7.3/0.7

10.8/0.7

13.5/0.7

1.5/0.8

2.0/0.8

3.0/0.8

3.5/0.8

5.0/0.8

6.2/0.8

7.1/0.8

10.1/0.8

12.7/0.8

(m3/min/MPa )

1.3/1.0

1.8/1.0

2.5/1.0

3.0/1.0

4.5/1.0

5.8/1.0

6.5/1.0

8.5/1.0

11.3/1.0

1.10/1.2

1.5/1.2

2.3/1.2

2.8/1.2

3.9/1.2

5.1/1.2

5.8/1.2

7.7/1.2

10.0/1.2

Pressure stage

Single

Environment

-5 +45

Cooling way

Air cooling

Air/ water cooled

Discharge temp

+15

dB(A)

632

652

682

722

Transmission way

Belt driven/Direct driven

Voltage v/ph/Hz

380.440/3/50.60

Power (kw)

11

15

18.5

22

30

37

45

55

75

Start way

Y-

Volume of lubricate

9

9

16

16

16

20

20

26

45

Dimension

Length mm

1170

1170

1310

1310

1380

1450

1520

1800

1800

Width mm

980

980

1100

1100

1150

1250

1300

1490

1490

Height mm

1200

1200

1400

1400

1430

1520

1600

1850

1850

Weight kg

465

495

650

680

790

1160

1280

1990

2180

Outlet inch

G 1

G 1

G1 1/ 4

G1 1/ 4

G1 1/ 4

G1 1/ 2

G1 1/ 2

G 2

G 2
