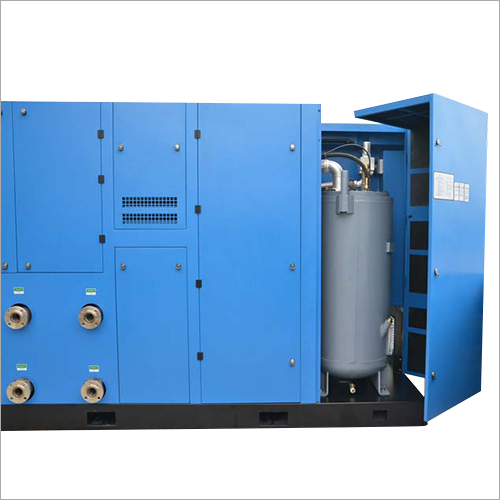

TP45G High Pressure Screw Compressor
Product Details:
- Product Type High Pressure Screw Compressor
- Usage Industrial
- Configuration Stationary
- Power Source Ac Power
- Silent Yes
- Voltage 220-240 Volt (v)
- Warranty Yes
- Click to View more
X
TP45G High Pressure Screw Compressor Price And Quantity
- 1 Piece
TP45G High Pressure Screw Compressor Product Specifications
- Stationary
- High Pressure Screw Compressor
- Yes
- Industrial
- Ac Power
- Yes
- 220-240 Volt (v)
TP45G High Pressure Screw Compressor Trade Information
- 1000 Piece Per Month
- 30 Days
Product Description
TP45G High Pressure Screw Compressor
Technical Specifications
| Model | Maximum work pressure | FAD | Air supply temperature | Power | Noise | Oil content | Weight | Cooling fan power | Compressed Air Outlet Diameter | Dimension | |
| LWH | |||||||||||
| Mpa | m3/min | oC | kW | HP | dB(A) | PPM | Kg | kW |
| mm | |
| TP15G | 3.0 | 1.45 | +25oC | 15 | 20 | 63 | 2 | 848 | 0.64 | 3/4 | 160011501315 |
| 4.0 | 1.12 | ||||||||||
| TP18G | 3.0 | 1.73 | 18.5 | 25 | 65 | 868 | |||||
| 4.0 | 1.38 | ||||||||||
| TP22G | 3.0 | 2.35 | 22 | 30 | 65 | 900 | |||||
| 4.0 | 1.65 | ||||||||||
| TP30G | 3.0 | 2.93 | 30 | 40 | 66 | 1217 | 2 | 3/4 | 190014201460 | ||
| 4.0 | 2.28 | ||||||||||
| TP37G | 3.0 | 3.65 | 37 | 50 | 67 | 1232 | |||||
| 4.0 | 2.83 | ||||||||||
| TP45G | 3.0 | 4.7 | 45 | 60 | 68 | 1286 | |||||
| 4.0 | 3.57 | ||||||||||
| TP55G | 3.0 | 6 | 55 | 75 | 70 | 2000 | 1 | 205014601500 | |||
| 4.0 | 4.5 | ||||||||||
| TP75G | 3.0 | 7.9 | 75 | 100 | 73 | 3820 | 4.3 | 1 | 225016001800 | ||
| 4.0 | 6.5 | ||||||||||
| TP90G | 3.0 | 10 | 90 | 125 | 73 | 3900 | |||||
| 4.0 | 7.84 | ||||||||||
| TP110G | 3.0 | 12.2 | 110 | 150 | 78 | 3920 | |||||
| 4.0 | 9.7 | ||||||||||
| TP132G | 3.0 | 14.2 | 132 | 175 | 78 | 4080 | 7 | 1 1/2 | 240017001550 | ||
| 4.0 | 11.68 | ||||||||||
| TP160G | 3.0 | 17.3 | 160 | 215 | 78 | 6450 | 266018001800 | ||||
| 4.0 | 14.2 | ||||||||||
| CM185G | 3.0 | 19.6 | 185 | 250 | 78 | 6520 | |||||
| 4.0 | 16.6 | ||||||||||
| TP200G | 3.0 | 22.8 | 200 | 270 | 78 | 6560 | |||||
| 4.0 | 17.9 | ||||||||||
| TP250G | 3.0 | 28.2 | 250 | 340 | 78 | 7200 | 11 | 2 |
| ||
| 4.0 | 22.8 | ||||||||||
