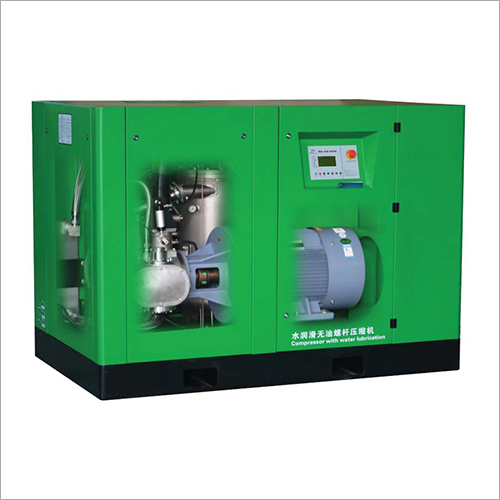

TP90BV/TP110BV/TP132BV Oil Free Screw Air Compressor

Model

Maximum
work pressure

FAD

Motor
power

Noise

Weight

Pipe
diameters of
cooling water
inlet and outlet

Quantily of
cooling water

Dimension

Air outlet

(32o)
Water
entering32o

LWH

Mpa

m3/min

kW

dB(A)

Kg

T/n

mm

TP08BV(F)

0.8

0.45~1.15

7.5

58

637

3/4

2

15507751445

3/4

1

0.41~1.02

TP11BV(F)

0.8

0.62~1.55

11

58

657

3/4

2.5

15507751445

3/4

1

0.53~1.32

1.25

0.48~1.02

TP15BV(F)

0.8

0.96~2.40

15

63

907

1

3.5

190010001635

1

1

0.85~2.12

1.25

0.64~1.61

TP18BV(F)

0.8

1.24~3.10

18.5

65

993

1

4

190010001635

1

1

1.05~2.62

1.25

0.85~2.13

TP22BV(F)

0.8

1.40~3.50

22

65

1023

1

5

190010001635

1

1

1.25~3.13

1.25

1.04~2.61

TP30BV

0.8

2.00~5.00

30

66

1300

1 1/4

7

190010501430

1 1/2

1

1.68~4.20

1.25

1.52~3.81

TP37BV

0.8

2.44~6.10

37

67

1320

1 1/4

9

190010501430

1 1/2

1

2.09~5.22

1.25

1.92~4.81

TP45BV

0.8

2.92~7.30

45

68

1569

1 1/2

10

220013501530

2

1

2.45~6.13

1.25

2.26~5.65

TP55BV

0.8

3.84~9.60

55

70

1665

1 1/2

12

220013501530

2

1

3.44~8.60

1.25

2.97~7.42

TP75BV

0.8

5.00~12.50

75

73

1889

1 1/2

18

220013501530

2

1

4.57~11.42

1.25

3.93~9.83

TP90BV

0.8

6.52~16.30

90

73

2356

2

20

255014001605

2.5

1

5.81~14.52

1.25

4.92~12.30

TP110BV

0.8

7.76~19.40

110

78

2376

2

24

255014001605

2.5

1

6.76~16.90

1.25

6.04~15.10

TP132BV

0.8

8.88~22.21

132

78

2522

2

30

255014001605

2 1/2

1

8.15~20.38

1.25

7.31~18.29

TP160BV

0.8

11.54~28.85

160

78

3810

2 1/2

35

310017002090

3

1

9.81~24.52

1.25

8.87~22.17

TP200BV

0.8

14.65~36.63

200

78

3910

3

43

310017002090

4

1

13.10~32.70

1.25

11.09~27.72

TP250BV

0.8

17.15~42.88

250

78

4120

3

53

310017002090

4

1

15.60~39.00

1.25

13.87~34.64
