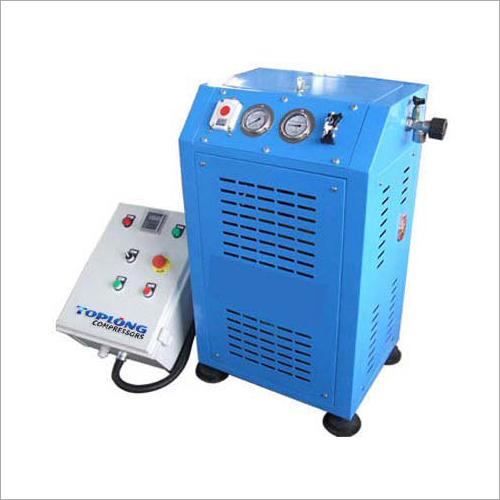

150 Kg CNG Filling Compressor
Product Details:
- Usage Industrial
- Phase 1 Phase
- Size Standard
- Product Type CNG Filling Compressor
- Power Source Ac Power
- Click to View more
X
150 Kg CNG Filling Compressor Price And Quantity
- 1 Piece
150 Kg CNG Filling Compressor Product Specifications
- Ac Power
- CNG Filling Compressor
- Industrial
- 1 Phase
- Standard
150 Kg CNG Filling Compressor Trade Information
- 1000 Piece Per Month
- 30 Days
- Australia Central America Western Europe Africa Middle East South America Asia Eastern Europe North America
Product Description
In order to meet diverse requirements of our clients, we are offering 150 Kg CNG Filling Compressor with supreme quality. Suitable option for heavy duty operations, offered compressor is known for its low maintenance cost, easy to install and accurate dimension. We deliver the 150 Kg CNG Filling Compressor, in accordance to international quality standards, within a stipulated time-frame. Also, we offer the CNG filling compressor at economical prices to our clients. It has a flow rate of about 3.5Nm3/h2cfm.The time required for filling is 3.5 hour/60l tank with a working pressure of 200 bar and 4.2 hour for 60ltank with 250 bar working pressure.
Specifications
|
Model |
TP5 |
|
Flow rate |
5.5 Nm3/h 3.5 cfm |
|
Filling time |
2.2 hour for 60L tank(200bar 3000psi) |
|
Working pressure |
200bar /3000psi or |
|
Inlet pressure |
Less than 0.3bar 4.5psi |
|
Motor power |
EX 3.0kw/4.0hp |
|
Oil separator / oil filter |
42005 |
|
Safety valve/ Alarm sensor |
1 in final/ option |
|
Time meter |
1 |
|
Switch |
auto stop |
|
Filling hose connect |
1 |
|
Dimensions |
600-900-650 mm |
|
Weight( Net) |
170kg |
|
Weight( Gross) |
190kg |
|
Noise level |
50 db(A) |
